ADV 71A5570-001D
MFG #71A5570-001D
UPC #78108709643
SKU #20280
58 in Stock
Stock Item
More available 01/09/2025
$137.39 per EA (1) / EA
Product description

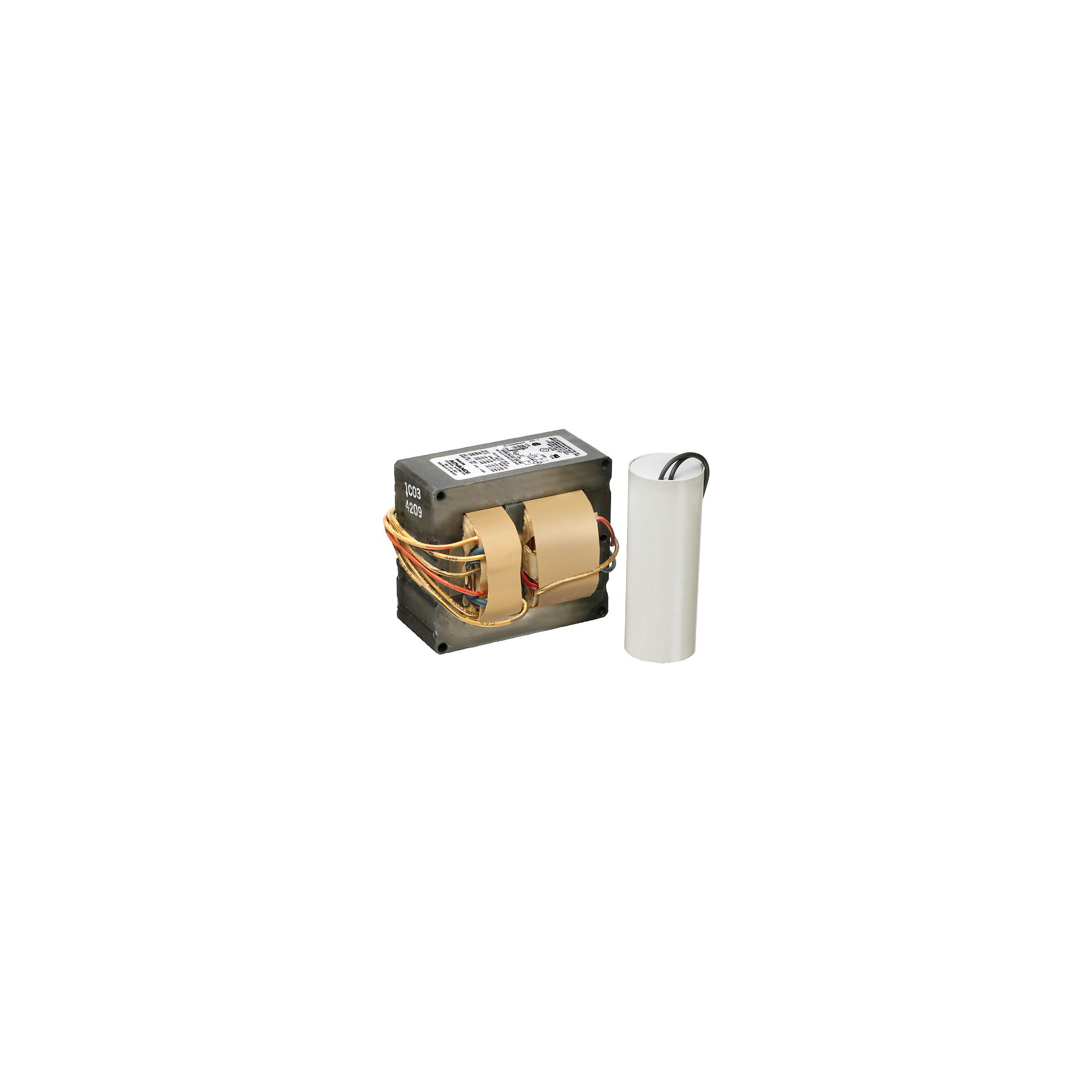

ADV 71A5570-001D 150/175WATT 120/208/240/277VAC PROBE START METAL HALIDE HID BALLAST CORE & COIL ANSI CODE M57/M107
Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 175 W Lamp, 210 W Wattage, 120/208/240/277 VAC, 1.8/1.04/0.9/0.8 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A5570 Lamp Base, Ballast Factor: 1, ANSI M57/M107 Ballast Grade, 4 in L x 3.95 in W x 2.9 in H Dimensions
Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 175 W Lamp, 210 W Wattage, 120/208/240/277 VAC, 1.8/1.04/0.9/0.8 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A5570 Lamp Base, Ballast Factor: 1, ANSI M57/M107 Ballast Grade, 4 in L x 3.95 in W x 2.9 in H Dimensions
- Lighting Luminaire Component and Outdoor Applications
- Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 175 W Lamp, 210 W Wattage, 120/208/240/277 VAC, 1.8/1.04/0.9/0.8 A, 60 Hz Frequency, Probe Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A5570 Lamp Base, Ballast Factor: 1, ANSI M57/M107 Ballast Grade, 4 in L x 3.95 in W x 2.9 in H Dimensions
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
10 Mfd capacitor
1.78/1.08/0.93/0.81 A input current (open circuit), 1.26/0.7/0.61/0.53 A input current (starting), 1.06 to 1.59/0.6 to 0.9/0.52 to 0.78/0.45 to 0.67 A input current (short circuit), 1.8/1.04/0.9/0.8 A input current (nominal)
3 x 4 in (2 LW) core
1.45 in Dia x 3.75 in H oval capacitor
Ballast replacement kit with dry film capacitor
UL insulation class H of 180 deg C
- BALLAST HID HID MET HALIDE 175W P 1 210W
- Product Catalog Page(s)
Specification Sheet
- RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class H
- Brand: Advance Flourescent & HID BallastANSI Code: M57/107Application: Lighting Luminaire ComponentBallast Factor: 1Country of Origin: CNDimmable: NoFrequency Rating: 60 HzHeight: 15.55 InLamp Type: Metal HalideLength: 0.16 INNumber of Lamps: 1Power Factor: 0.90Special Features: Suitable for Outdoor; UL Listed, CSA, RoHSStandard: ULR;CSA certificate;RoHS CompliantStart Type: PROBEThermal Protection: Class PType: Magnetic HIDVoltage Rating: 120/208/240/277 VWattage: 175 WWidth: 1.1 IN
