SIEM P4260L3225CU
MFG #P4260L3225CU
UPC #66264315899
SKU #3880631
1 in Stock
Stock Item
More available 01/06/2025 and 01/11/2025
$744.99 per EA (1) / EA
Product description

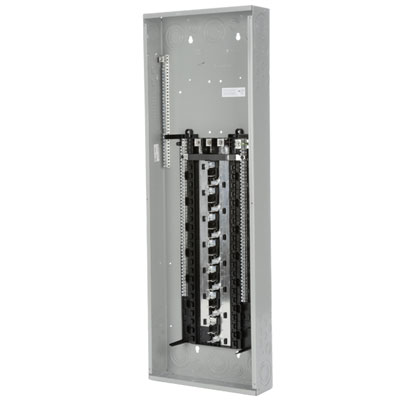

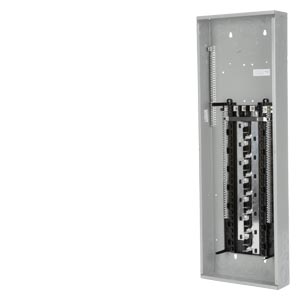

SIEM P4260L3225CU 225AMP MAIN LUG (42)1POLE SPACE (60)CIRCUITS 120/240VAC 3PHASE 3WIRE or 3PHASE 4WIRE 120/208VAC LOADCENTER COPPER BUS NEMA1 COMBINATION COVER
Siemens Three Phase Main Lug Load Center, Series: PL Series, 120/240 VAC, 225 A, 3 Pole, 100 kA Interrupt, 60 Circuits, MB Breaker, 4-Wire Wiring Configuration, 42 Spaces, Surface Mount, NEMA 1 Enclosure, 42 in H Enclosure Box, 42 in H x 14-1/4 in W x 4-1/4 in D Dimensions
Siemens Three Phase Main Lug Load Center, Series: PL Series, 120/240 VAC, 225 A, 3 Pole, 100 kA Interrupt, 60 Circuits, MB Breaker, 4-Wire Wiring Configuration, 42 Spaces, Surface Mount, NEMA 1 Enclosure, 42 in H Enclosure Box, 42 in H x 14-1/4 in W x 4-1/4 in D Dimensions
- Residential Applications
- Siemens Three Phase Main Lug Load Center, Series: PL Series, 120/240 VAC, 225 A, 3 Pole, 100 kA Interrupt, 60 Circuits, MB Breaker, 4-Wire Wiring Configuration, 42 Spaces, Surface Mount, NEMA 1 Enclosure, 42 in H Enclosure Box, 42 in H x 14-1/4 in W x 4-1/4 in D Dimensions
- CENTER LOAD LUG MAIN PH THREE 120/240VAC
- Product Catalog Page(s)
Specification Sheet
- UL Listed
- Brand: Siemens Energy (ITE)Amperage Rating: 225 AApplication: RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTIONBus Rating: COPPERBUSCable Size: N/ACircuit Breaker Type: N/ACountry of Origin: MXCover Type: PL SeriesEnclosure: TYPE1Frequency Rating: N/AInterrupt Rating: 100000 kALoad Regulation: 225AMounting: FLUSH/SURFACENumber Of Contacts: N/ANumber Of Feeders: 60Number Of Spaces: 42Phase: 3Size: 4002Special Features: GREYTRIMStandard: N/ASub Brand: ULType: PLSERIESASSEMBLEDLOADCENTERVoltage Rating: 120Wattage: N/AWiring Configuration: 3/4w
