BURN YA26LBOX
MFG #YA26LBOX
UPC #78181055375
SKU #2161072
68 in Stock
Stock Item
More available 01/16/2025
$7.61 per EA (1) / EA
Product description

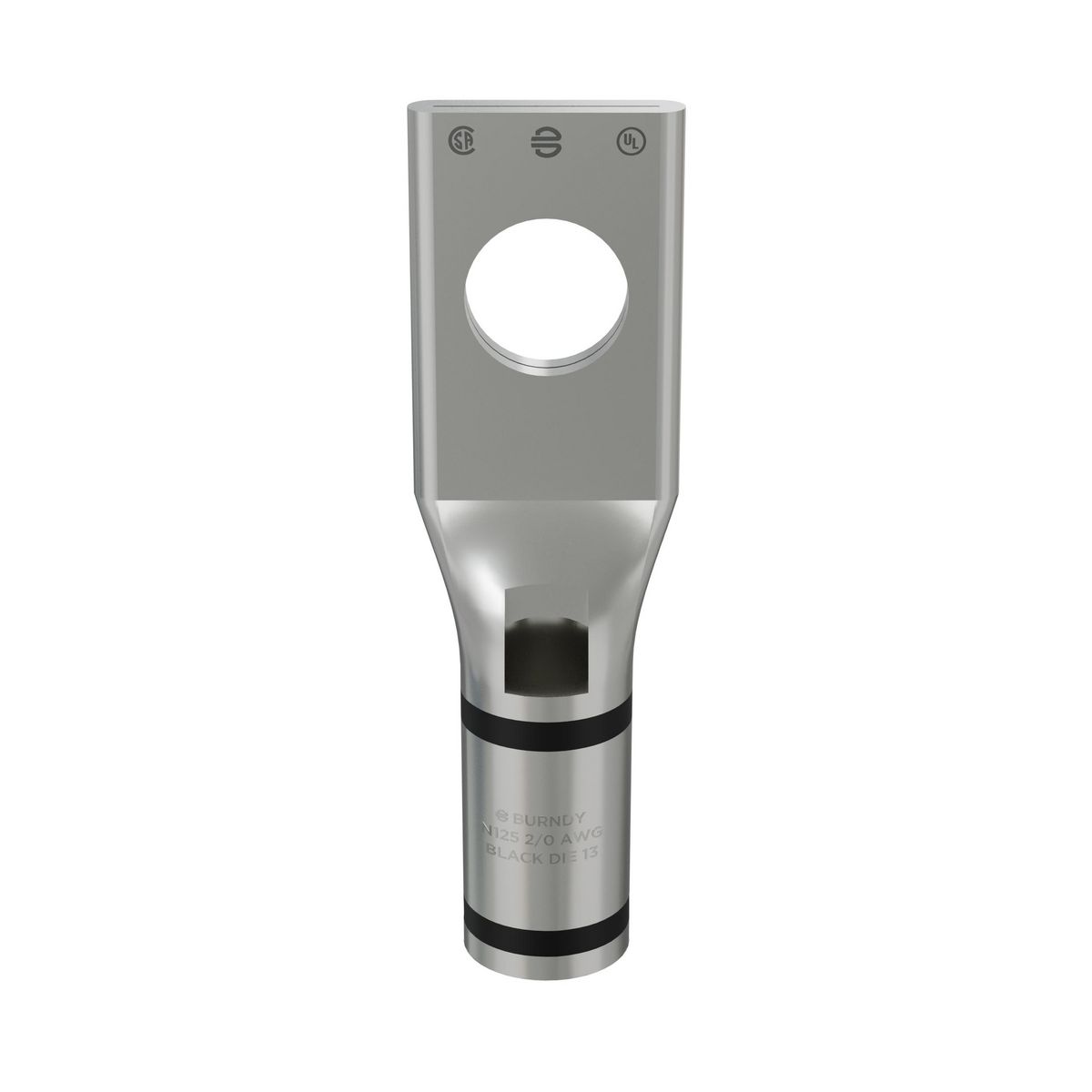

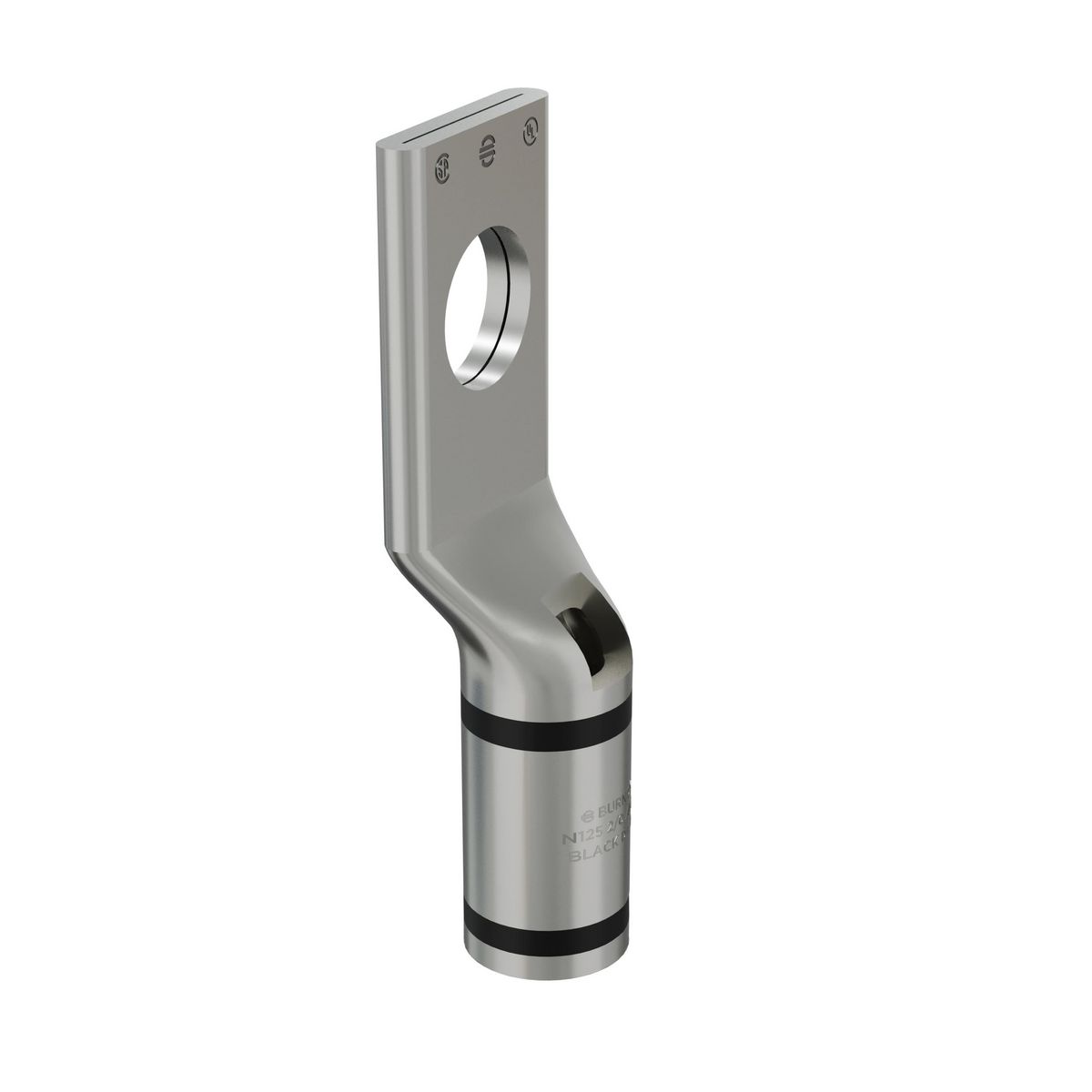

BURN YA26LBOX 2/0 CU 1-HOLE SHORT 3/8
BURNDY® HYLUG™ Compression Lug, 1-Hole, Series: YA-L, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: 13, 600 VAC to 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 2.19 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.94 in L Barrel, 1 in L Wire Strip, Tin Plated, 90 deg C, Copper, Black
BURNDY® HYLUG™ Compression Lug, 1-Hole, Series: YA-L, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: 13, 600 VAC to 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 2.19 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.94 in L Barrel, 1 in L Wire Strip, Tin Plated, 90 deg C, Copper, Black
- For code conductor
- BURNDY® HYLUG™ Compression Lug, 1-Hole, Series: YA-L, Stranded Copper Conductor, 2/0 AWG Conductor, Die Code: 13, 600 VAC to 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 2.19 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.94 in L Barrel, 1 in L Wire Strip, Tin Plated, 90 deg C, Copper, Black
- 2/0 AWG stranded conductor
- LUG COMPRESSION 2/0AWG STRD COPPER 13 BK
- Product Catalog Page(s)
Specification Sheet
- ARRA Compliant|Buy American Act Compliant|CSA Certified|PROP65: This product can expose you to chemicals including Lead and Lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov|RoHS Compliant|UL 467A/467B
- Brand: BurndyApplication: Wire TerminationColor: BlackCountry of Origin: USMaterial: CopperSub Brand: HYLUGType: Standard Barrel, Tin PlatedVoltage Rating: 35 kV
