BURN AMS2
MFG #AMS2
UPC #78181024100
SKU #23119
264 in Stock
Stock Item
More available 01/11/2025
$5.92 per EA (1) / EA
Product description

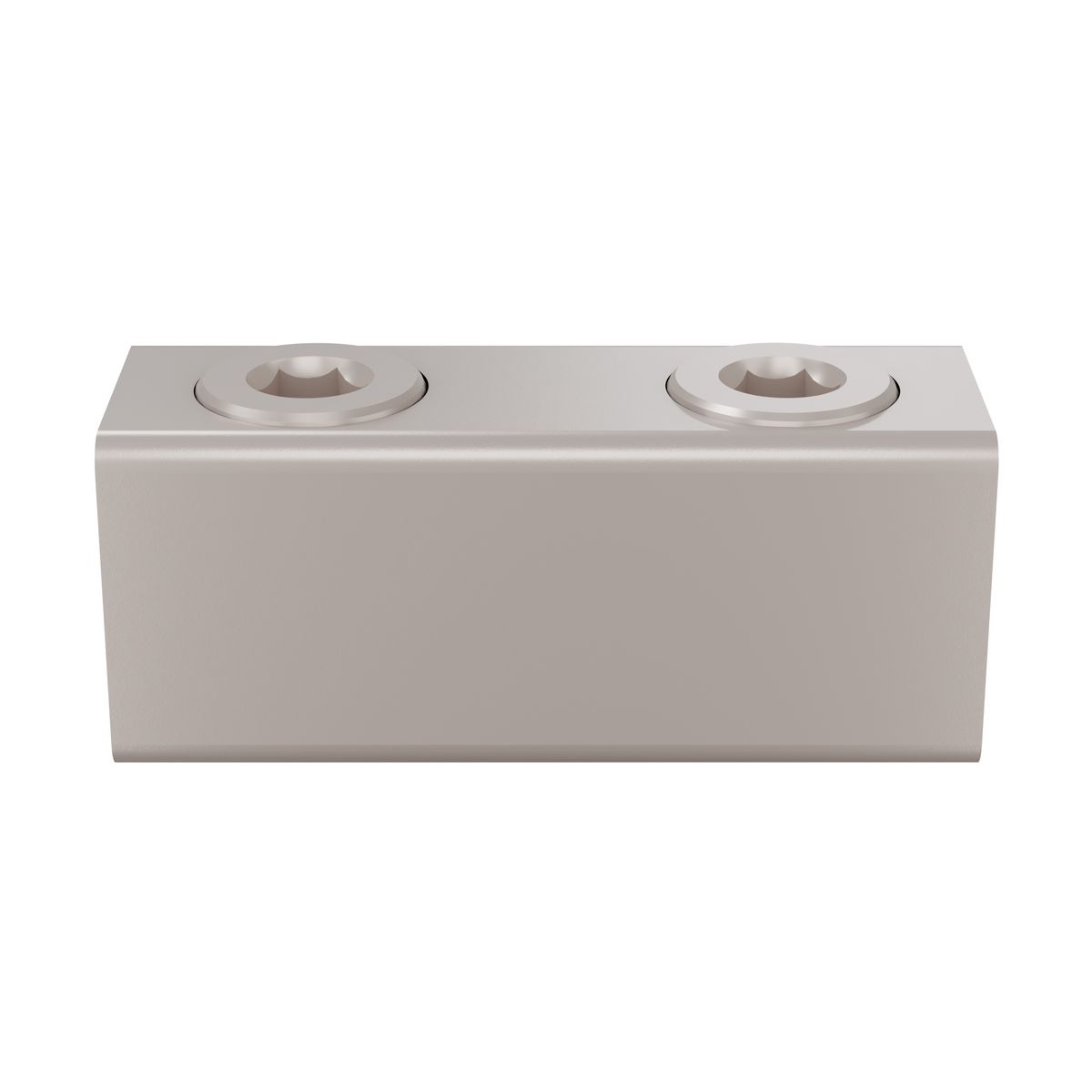

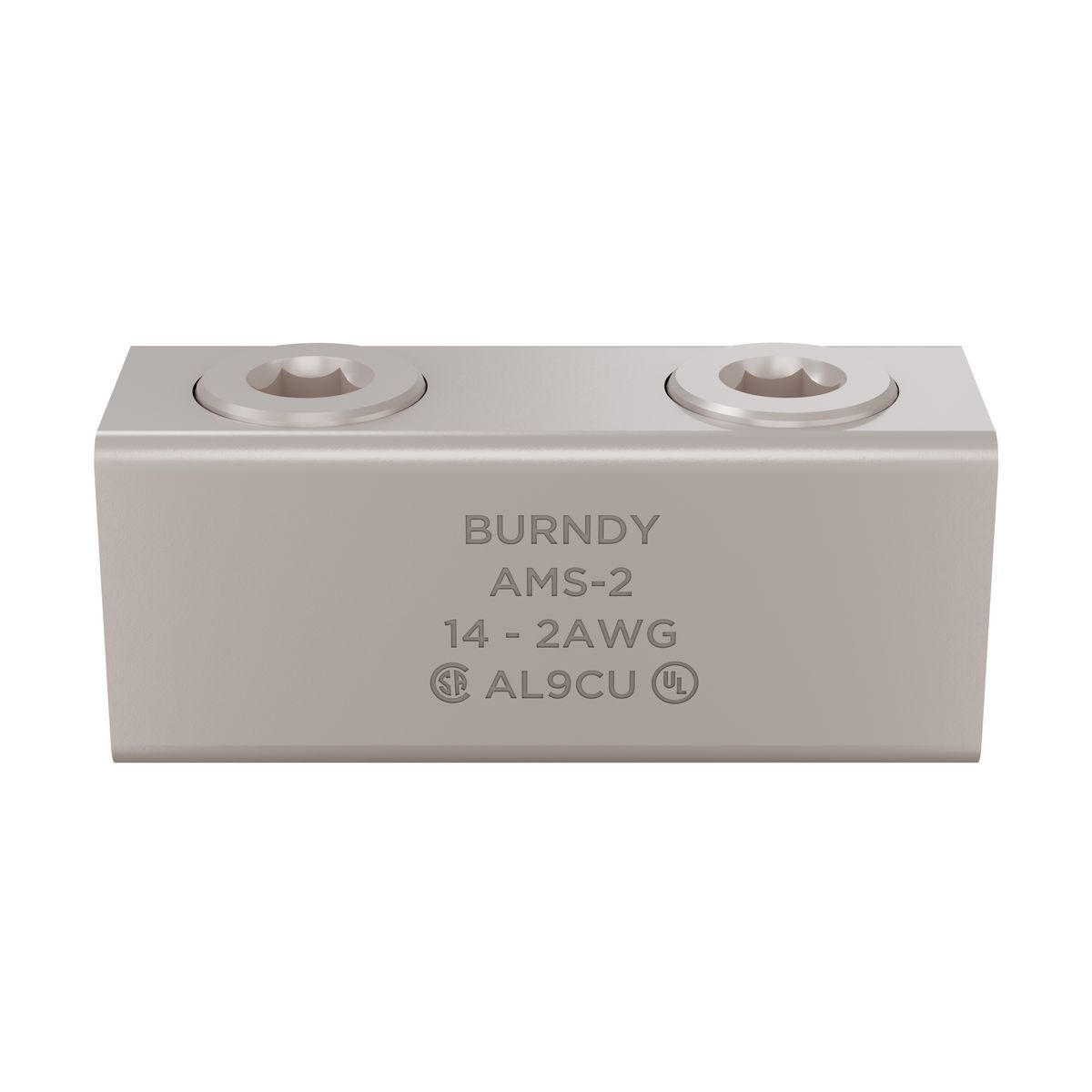

BURN AMS2 DUAL RATED CU/AL SPLICER 2-14 AWG
BURNDY® Mechanical Splicer/Reducer Connector, Dual Rated Non-Insulated, Series: AMS, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 2 Screws, Specifications: 3/8 in Dia Slotted Hex Screws, 50 in-lb Installation Torque, 194 deg F, Aluminum, Tin Plated, 1-5937 in L x 0.5625 in W x 0.79 in H Dimensions
BURNDY® Mechanical Splicer/Reducer Connector, Dual Rated Non-Insulated, Series: AMS, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 2 Screws, Specifications: 3/8 in Dia Slotted Hex Screws, 50 in-lb Installation Torque, 194 deg F, Aluminum, Tin Plated, 1-5937 in L x 0.5625 in W x 0.79 in H Dimensions
- For copper and aluminum conductors
- BURNDY® Mechanical Splicer/Reducer Connector, Dual Rated Non-Insulated, Series: AMS, Solid/Stranded Aluminum/Copper Conductor, 14 to 2 AWG Conductor, 2 Screws, Specifications: 3/8 in Dia Slotted Hex Screws, 50 in-lb Installation Torque, 194 deg F, Aluminum, Tin Plated, 1-5937 in L x 0.5625 in W x 0.79 in H Dimensions
- PENTROX® oxide inhibiting joint compounds are recommended for all aluminum applications
Tin-plated provides low contact resistance and prevents galvanic corrosion
Connectors feature rounded bottoms facilitates taping
Solid center barrier prevents contact of dissimilar metals
Large screw diameters ensures greater surface contact with wires for maximum pullout force
Each splice is an effective reducing connector because of large cable ranges
14 to 2 AWG stranded, 12 to 2 AWG solid conductor range for copper
- CONNECTOR SPLICER/RDCR MECH 14 TO 2AWG 2
- Product Catalog Page(s)
Specification Sheet
- ANSI C119.4|ARRA Compliant|Buy American Act Compliant|CSA Certified|RoHS Compliant|UL 467|PROP65: This product can expose you to chemicals including - lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Brand: BurndyApplication: For Use With Copper And Aluminum ConductorsConductor Size: 14-2 AWGCountry of Origin: USFinish: Tin PlatedInsulation: NoneMaterial: AluminumSize: 1-19/32 IN Length X 9/16 IN Width X 9/16 IN Dimension H1 X 0.79 IN Maximum Dimension H2Sub Brand: SPLICER/REDUCERTemperature Rating: 194° FType: AMS, Dual Rated
