TB ADR25-21
MFG #ADR25-21
UPC #78378661012
SKU #83201
209 in Stock
Stock Item
More available 12/06/2024
$1063.10 per C (100) / EA
Product description

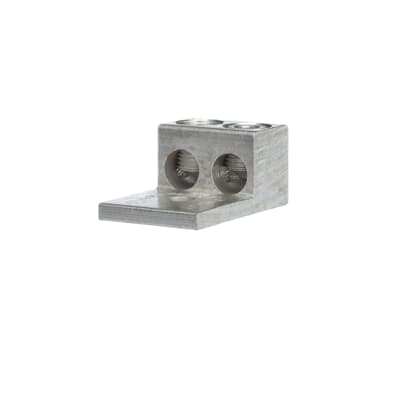

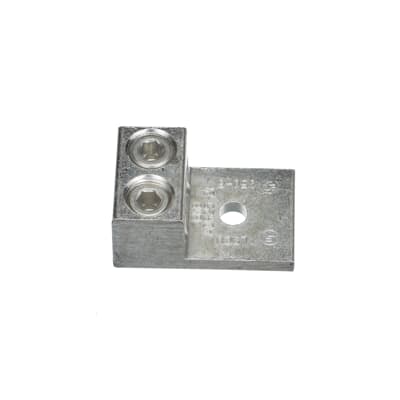

TB ADR25-21 (2)CONDUCTOR #6-#250MCM 3/8" BOLT HOLE MECHANICAL LUG ALUMINUM/COPPER
Blackburn ADR25-21 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-9/16 in L x 1-41/64 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 13/16 in Hole Spacing, Aluminum, Tin Coated, 2-9/16 in L x 1-41/64 in W x 1-3/16 in H Dimensions
Blackburn ADR25-21 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-9/16 in L x 1-41/64 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 13/16 in Hole Spacing, Aluminum, Tin Coated, 2-9/16 in L x 1-41/64 in W x 1-3/16 in H Dimensions
- Blackburn ADR25-21 Mechanical Connector, Type ADR-ALCUL Dual Rated, Aluminum/Stranded Copper Conductor, 6 AWG to 250 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-9/16 in L x 1-41/64 in W x 1/4 in THK Tongue, Straight Tongue, Specifications: 2-Conductor, 13/16 in Hole Spacing, Aluminum, Tin Coated, 2-9/16 in L x 1-41/64 in W x 1-3/16 in H Dimensions
- CONNECTOR MECH AL/STRD COPPER 3/8IN 1 AL
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL File No. E9809
- Brand: Thomas & BettsConductor Range (Main/Primary): 6-250Country of Origin: MXFinish: Tin-PlatedMaterial: AluminumMounting Hole Spacing: 3/8 inNumber Of Conductors: 2Number Of Mounting Holes: 1Special Features: Easy Installation - no special tools requiredStandard: UL E9809Type: Dual-Rated Mechanical Connector
