IDEAL 30-088J
MFG #30-088J
UPC #78325046082
SKU #1274004
3100 in Stock
Special Order Item. Minimum purchase may be required.
More available 01/12/2025
$40.40 per C (100) / EA
Product description

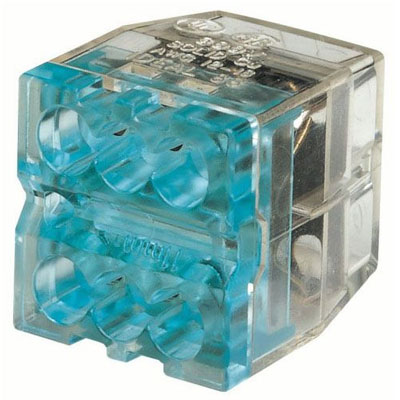

IDEAL 30-088J 6-PORT BLUE PUSH-IN WIRE CONNECTOR WIRE RANGE SOLID #20-#12 STRANDED #16-#14(19 STRAND) 100JAR **DISCONTINUED** USE 30-1088J **
IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Wire, 600 VAC, Specifications: 6 Stacked Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Polycarbonate, Blue, Tin Plated, 0.607 in L x 0.603 in W x 0.729 in H Dimensions
IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Wire, 600 VAC, Specifications: 6 Stacked Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Polycarbonate, Blue, Tin Plated, 0.607 in L x 0.603 in W x 0.729 in H Dimensions
- Grounding and Bonding Applications
- IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 14 AWG, 18 to 12 AWG Wire, 600 VAC, Specifications: 6 Stacked Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Polycarbonate, Blue, Tin Plated, 0.607 in L x 0.603 in W x 0.729 in H Dimensions
- Low insertion force for fast and easy connections
Compact size makes installation easy
Clear shell gives visual verification of connection
600 VAC maximum building wire, 1000 VAC maximum signs and lighting fixtures
Tough, flame-retardant shell rated at 105 deg C
Accepts any combination of 12 to 18 AWG solid or tin bonded copper conductors
Electrolytic tin plated copper bus system
Stainless steel inserts restrict pull-out
Color coded for easy identification
Built-in strip length gauge
Ground rating eliminates need for special "ground" connector
20 to 12 AWG solid, 16 to 14 AWG (19 strand or less) 18 AWG (7 strand or less) stranded, 14 to 12 AWG (19 strand or less) 16 AWG (26 strand or less) 18 AWG (16 strand or less) stranded (tin bonded)
- CONNECTOR W PUSH-IN SOL/STRD/TIN-BND BL
- Product Catalog Page(s)
MSDS
Specification Sheet
- RoHS Compliant|CE Certified|CSA C22.2 File No. 188 Certified|UL94 V-2 Flammability Rating|UL 486C, 467
- Brand: Ideal IndustriesApplication: For Grounding And Bonding ApplicationsColor: BlueConnection: 6 Stacked PortsCountry of Origin: JPNSize: 0.607 IN Length X 0.603 IN Width X 0.729 IN HeightStandard: RoHS Compliant|CE Certified|CSA C22.2 File No. 188 Certified|UL94 V-2 Flammability Rating|UL 486C, 467Sub Brand: In-SureTemperature Rating: 105 DEG C Shell RatedType: Push-InVoltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting FixturesWire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded)Wire Type: Solid, Stranded, Stranded (Tin Bonded)
