TB 10RC-38
MFG #10RC-38
UPC #78621080050
SKU #71570
50 in Stock
Special Order Item. Minimum purchase may be required.
More available 01/04/2025
$210.20 per C (100) / EA
Product description

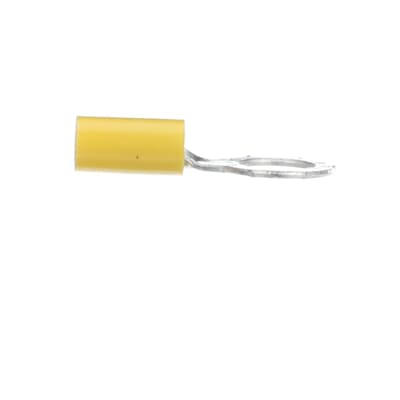

TB 10RC-38 TERMINAL RING #12-#10AWG VINYL INSULATED 3/8" BOLT HOLE YELLOW 50/BK
Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow
Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow
- For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
- Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow
- TERMINAL RING 12 TO 10AWG 1.29IN COPPER
- Product Catalog Page(s)
Specification Sheet
- UL Listed|UL 94 V-0 Flammability Rated|UL File No. E9809|CSA Certified
- Brand: Thomas & BettsColor: YellowCountry of Origin: USMaterial: CopperSpecial Features: These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out valueStandard: UL E9809Type: Vinyl Insulated Ring TerminalVoltage Rating: 600 VWire Size: 12-10 AWG
