SWCOMP 339
MFG #339
UPC #75133813260
SKU #3809192
40 in Stock
Stock Item
More available 11/13/2024
$24.33 per EA (1) / EA
Product description

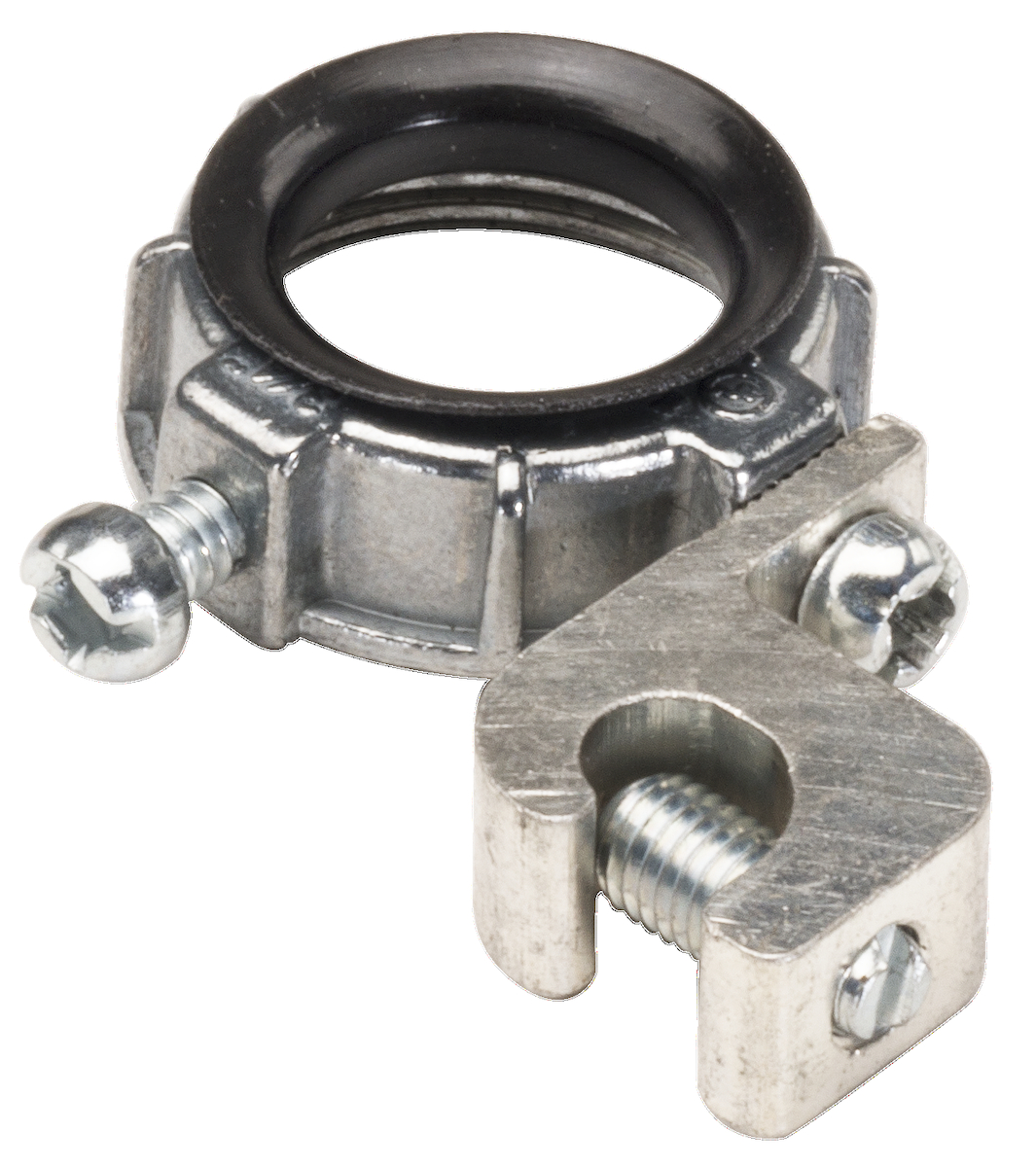

SWCOMP 339 3 1/2IN ZINC DIE CAST INSULATED METALLIC GROUNDING BUSHING
Southwire - Topaz Ground Bushing, Female Threaded, 3-1/2 in Trade, 14 AWG Minimum Wire, 1/0 AWG Maximum Wire, Insulated Throat, Aluminum Lay-In Lug, 4.68 in Diameter, 0.93 in Height, Die Cast Zinc
Southwire - Topaz Ground Bushing, Female Threaded, 3-1/2 in Trade, 14 AWG Minimum Wire, 1/0 AWG Maximum Wire, Insulated Throat, Aluminum Lay-In Lug, 4.68 in Diameter, 0.93 in Height, Die Cast Zinc
- For copper/aluminum bare ground connector, rigid, IMC conduit
- Southwire - Topaz Ground Bushing, Female Threaded, 3-1/2 in Trade, 14 AWG Minimum Wire, 1/0 AWG Maximum Wire, Insulated Throat, Aluminum Lay-In Lug, 4.68 in Diameter, 0.93 in Height, Die Cast Zinc
- UL listed for use with copper or aluminum grounding conductor
Tin plated aluminum alloy 6061-T6 rated for AL and CU conductor
Thermoplastic liner
- BUSHING GND 3-1/2IN 14AWG 1/0AWG 4.68IN
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL 514B|UL File No. E17025|US Federal Specification A-A-50552|NEMA/ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
- Brand: Southwire Components
