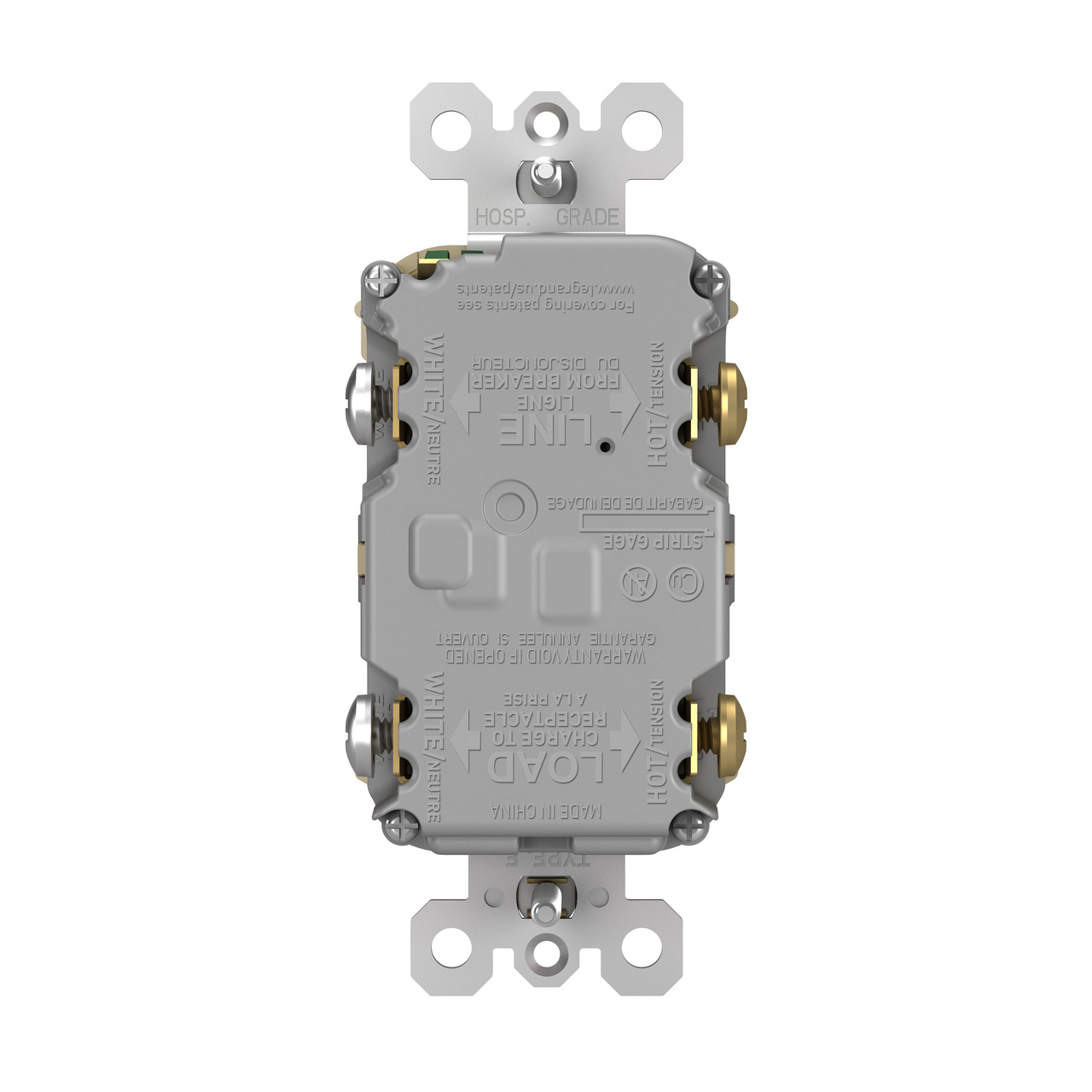

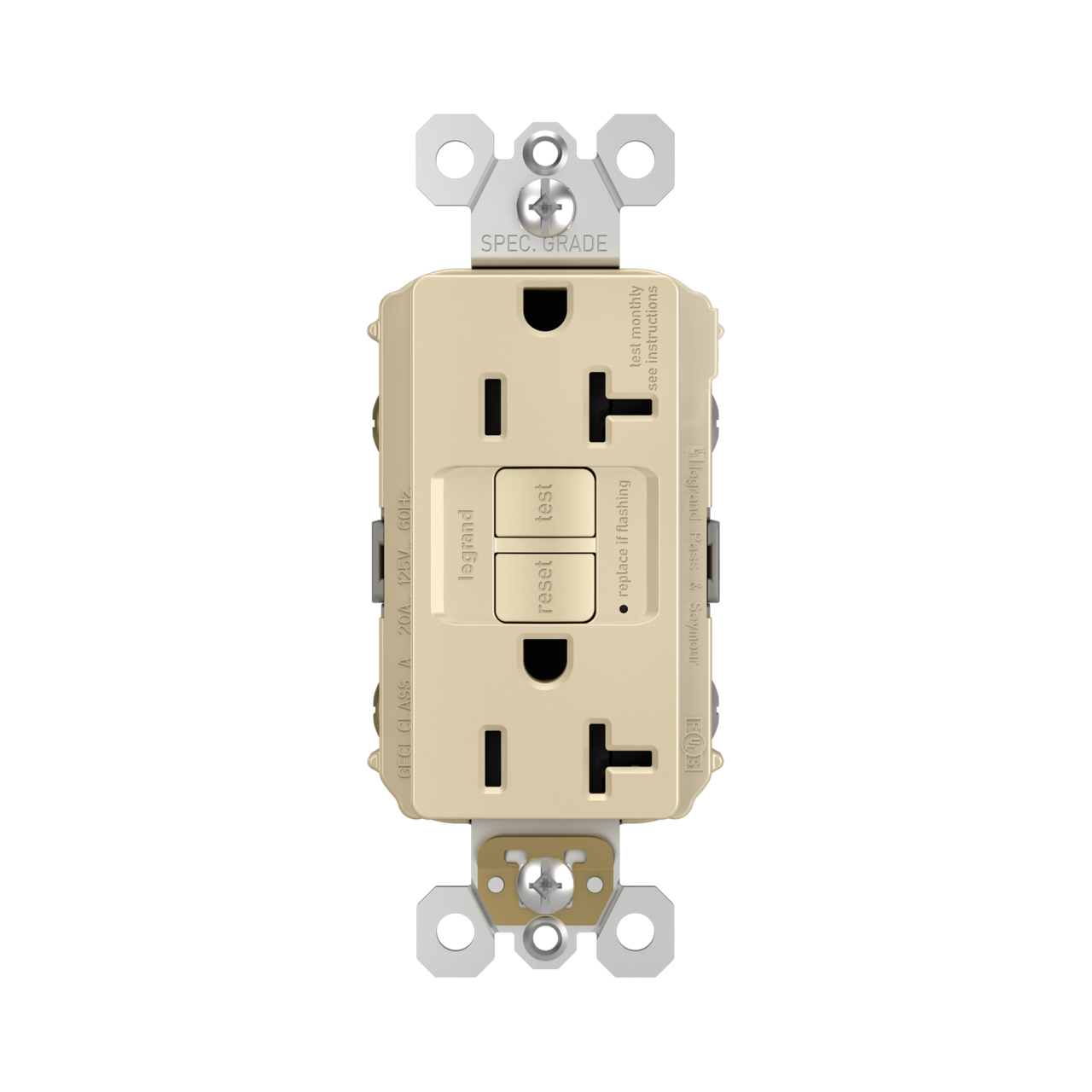

PS 2097I
MFG #2097I
UPC #78500703596
SKU #4069563
460 in Stock
Stock Item
More available 11/27/2024 and 12/15/2024
$21.61 per EA (1) / EA
Product description
PS 2097I 20AMP IVORY 125VAC NEMA5-20R 2POLE 3WIRE BACK/SIDE WIRED DUPLEX GFCI RECEPTACLE SPECIFICATION GRADE
Pass & Seymour Radiant GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Pass & Seymour Radiant GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- Commercial, Residential, Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
- Pass & Seymour® Radiant® GFCI Receptacle, Duplex Self-Test, Series: 2097, 125 VAC, 20 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
- Nickel plated steel 8 to 32 terminal screw
Conducts an automatic test every three sec, ensuring it's always ready to protect, if the device fails the test, the indicator light flashes to signal that the GFCI should be replaced
It also has our proven SafeLock™ protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
Auto-ground clip assures a positive ground to metal box
Feed through wiring configuration allows GFCI to protect downstream receptacles
Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3-gang kA/6 kV voltage surge test cycles
Trip indicator light (red LED), two backwire holes per terminal
Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire
Ground screw has back wire clamp for easy installation
10 kA short circuit current rating
Mounting screws are shipped captive in the device and wallplate for easier installation
High impact resistant thermoplastic construction
Extra long strap, button colors match the device face
Dual direction test and reset buttons
Class A rated GFCI
5 +/- 1 m trip threshold, 0.025 sec trip time, 20 A feed-thru capacity, 4 to 6 mA trip level, withstands 1500 VAC minimum dielectric voltage, terminals identified in accordance with UL498 (hot, white, green)
95% maximum humidity, nylon face and body, 0.03 in brass contacts, galvanized steel mounting straps, thermoplastic tamper resistant shutter
Nickel plated steel 8 to 32 terminal screw
- RECEPTACLE GFCI 125VAC 20A 2 3 IVORY
- Product Catalog Page(s)
Specification Sheet
- cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|UL 498/943|UL 94 V-2 Flammability Rated
- Brand: Pass & Seymour LegrandActuator: Control CircuitAmperage Rating: 20Application: Commercial/ResidentialConnection: Back and side wireCountry of Origin: CNEnvironmental Conditions: 95% Humidity, UL 94 V2Frequency Rating: 60 HZHeight: 4.2Interrupt Rating: 4 to 6 mALength: 1.03Material: ThermoplaticNumber of Poles: 2Operating Temperature: -35°C to +66°CStandard: cULus Listed File No. E42190|Federal Specification W-C-596|FULs Listed|UL 498/943|UL 94 V-2 Flammability RatedSub Brand: Pass & SeymourTrip Range: 4 to 6 mATrip Type: .025 Second NominalType: Specification Gr4ade 20A Self-Test Duplex GFCIVoltage Rating: 125Width: 1.73
