HUBW DS120W
MFG #DS120W
UPC #78358510837
SKU #2772653
99 in Stock
Stock Item
More available 12/10/2024 and 12/30/2024
$7.77 per EA (1) / EA
Product description

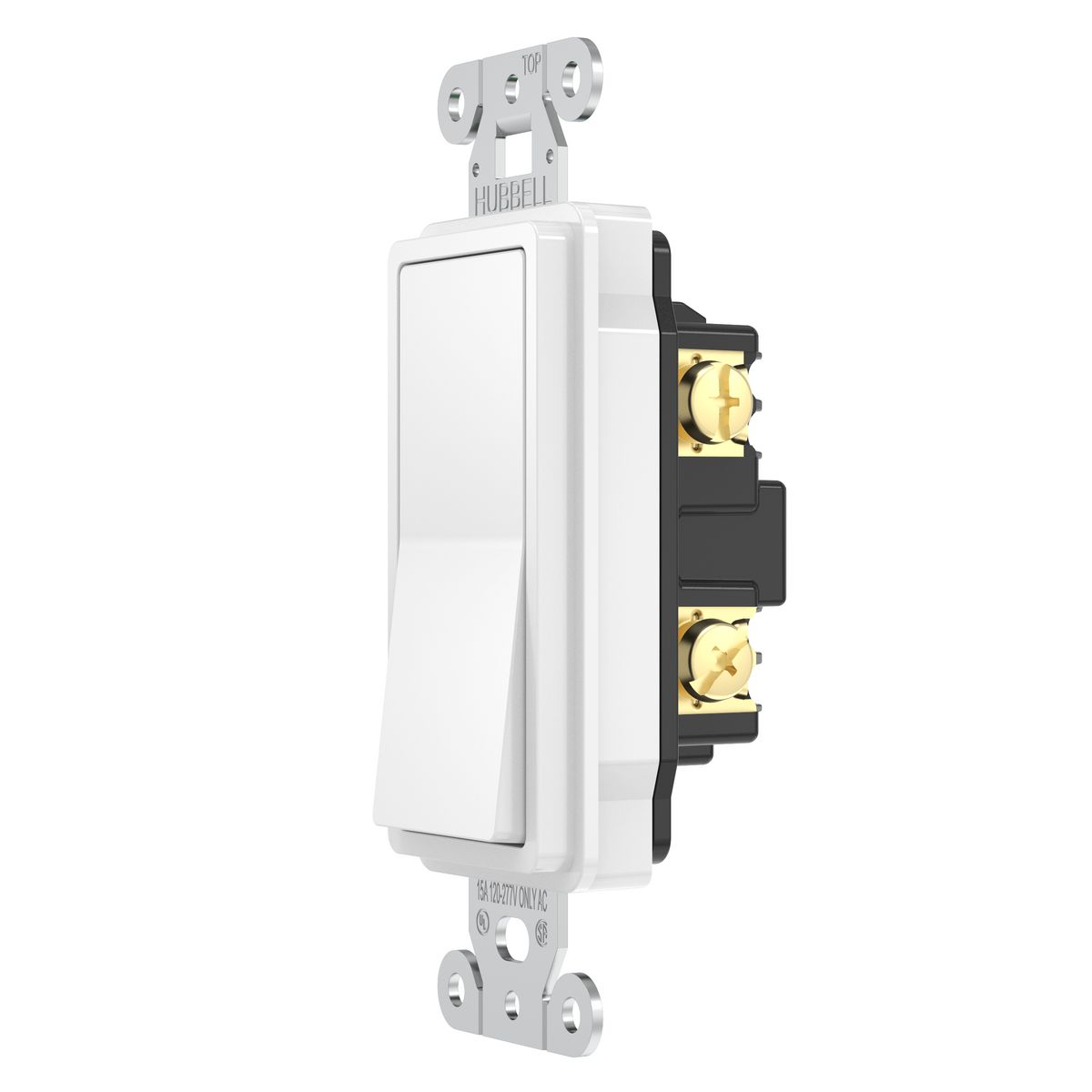

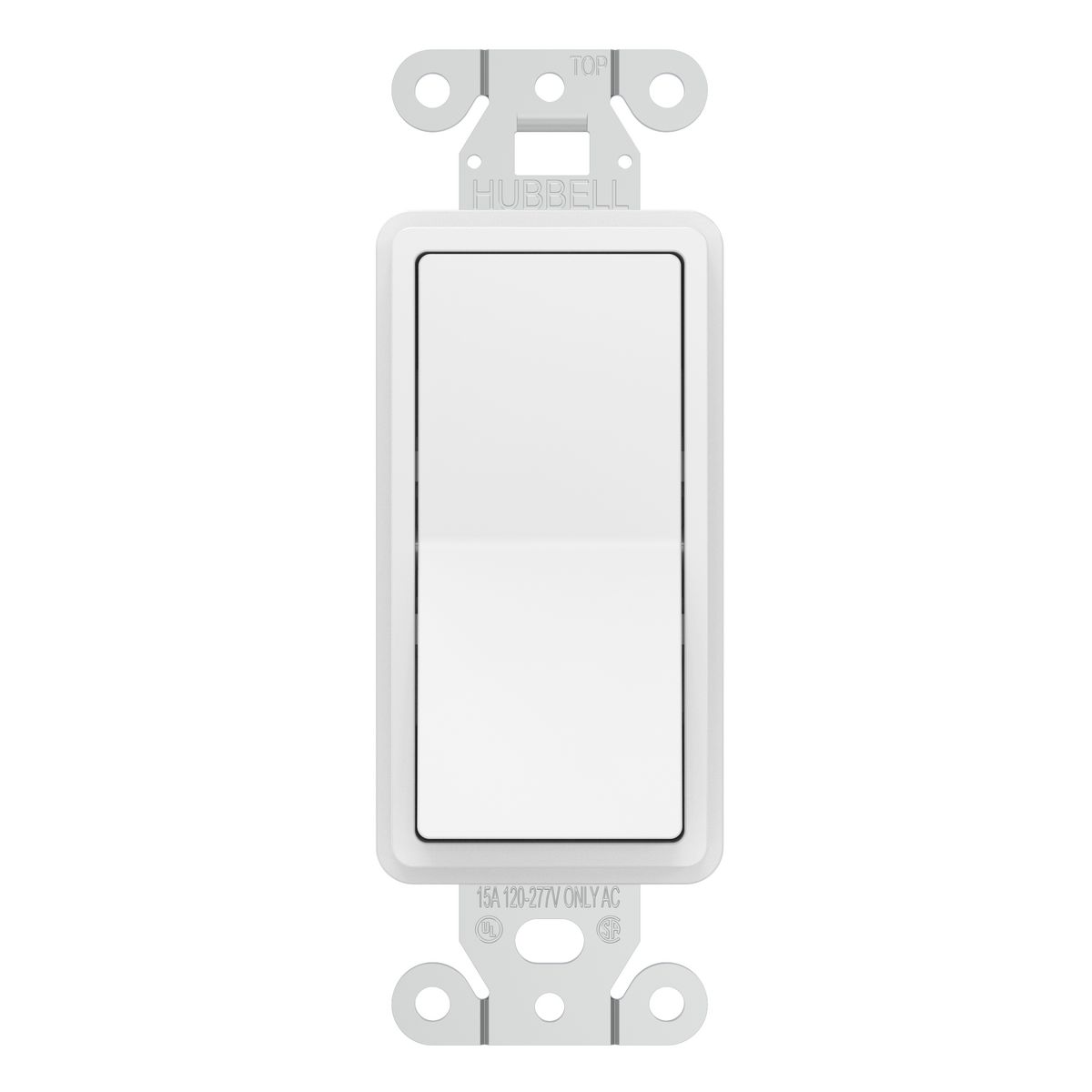

HUBW DS120W 20AMP WHITE 120/277VAC SINGLE POLE DECORATOR ROCKER STYLE SWITCH BACK/ SIDE WIRED SPECIFICATION GRADE
Wiring Device-Kellems StyleLine® Decorator Switch, General Purpose Self-Grounding Specification Grade Standard, Series: Decorator, 120/277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 20 A at 120/277 VAC Contact, 1 Pole, Positive Snap Action, Rocker Actuator, Threaded Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Composite, White, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.276 in H x 1.435 in W x 1.539 in D Dimensions
Wiring Device-Kellems StyleLine® Decorator Switch, General Purpose Self-Grounding Specification Grade Standard, Series: Decorator, 120/277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 20 A at 120/277 VAC Contact, 1 Pole, Positive Snap Action, Rocker Actuator, Threaded Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Composite, White, Environmental Conditions: -40 to 75 deg C Operating Temperature, 4.276 in H x 1.435 in W x 1.539 in D Dimensions
- Commercial Heavy Duty Applications
- Wiring Device-Kellems Style Line AC Switch, Standard Self-Grounding, Series: Decorator, 120 to 277 VAC, 20 A, 5540 W Power, 2 Position Contact Configuration, 1 Pole, Positive Snap Action, Rocker Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 75 deg C, 4.28 x 1.43 x 1.54 in
- SWITCH AC 120/277VAC 20A 5540W 2-POSN 1
- Product Catalog Page(s)
MSDS
Specification Sheet
- UL 20|UL94 V-2 Flammability Rating|CSA Certified|NEMA WD1|RoHS Compliant
- Brand: Hubbell Wiring DevicesAction: Positive SnapActuator: RockerAmperage Rating: 20 AApplication: Commercial Heavy DutyColor: WhiteConnection: Terminal ScrewContact Configuration: 2 PositionContact Rating: Per UL 20Country of Origin: CNEnclosure: NoneEnvironmental Conditions: Indoor Dry Unless Protected By Additional MeansIndicator: NoneMaterial: ThermoplasticMounting: Screw MountNumber of Poles: Single PoleOperating Cycles: 50,000 CyclesOperating Temperature: Maximum continuous 75°C and minimum -40°C without ImpactSize: 4.28 in x 1.43 in x 1.54 inSpecial Features: Standard ProductStandard: UL 20|CSA Certified|UL94 V-2 Flammability RatingSub Brand: AC Decorator SwitchesType: Rocker/DecoratorVoltage Rating: 120-277 VACWattage: 5540 W
