HUBW HBL5266C
MFG #HBL5266C
UPC #78358517300
SKU #44204
380 available today
Stock Item
Please contact inside sales for delivery information
$28.99 per EA (1) / EA
Product description

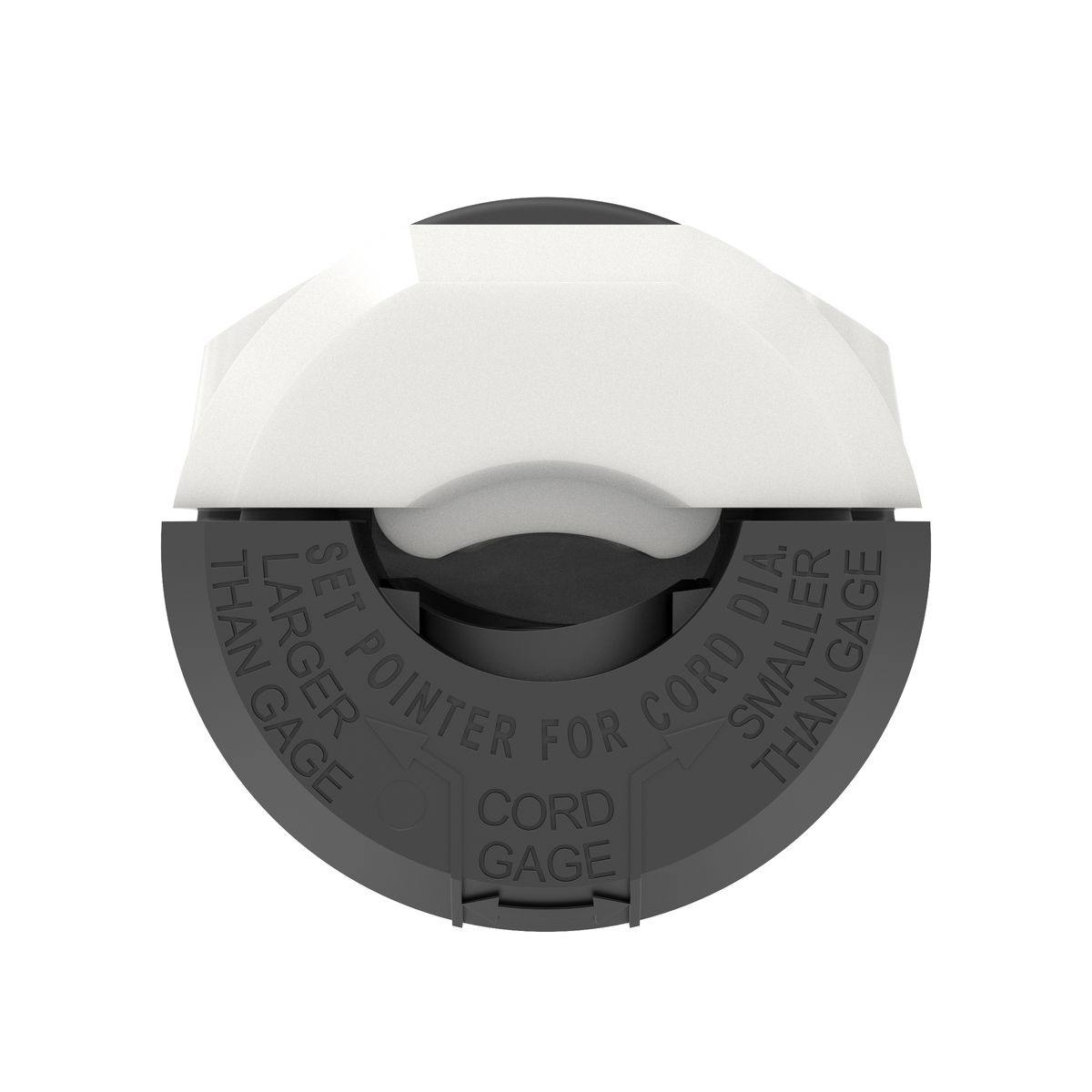

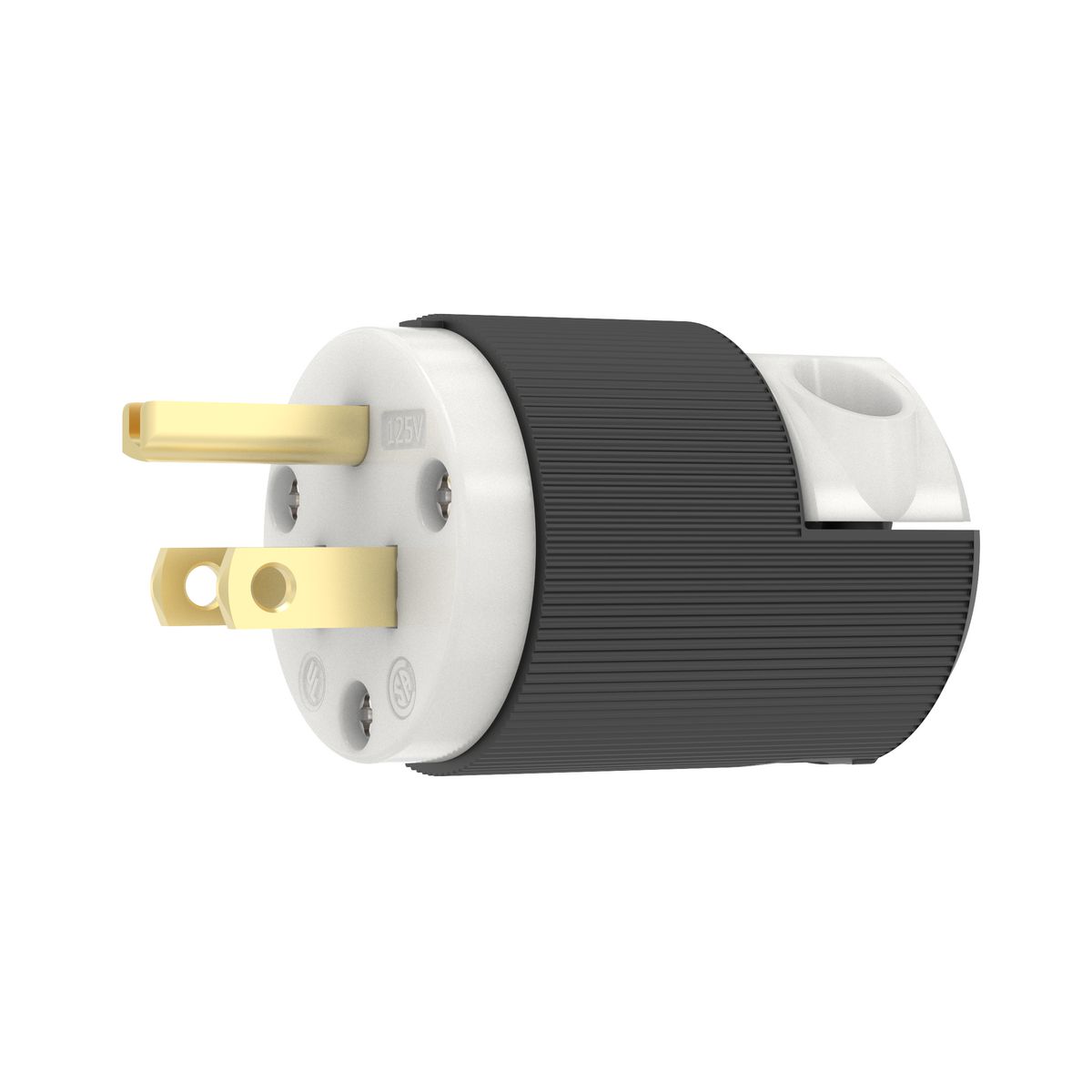

HUBW HBL5266C 15AMP 125VAC NEMA5-15P 2POLE 3WIRE INSULGRIP PLUG .230"- .720" CORD DIAMETER BLACK/WHITE NYLON IP20
Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Heavy Duty Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Black/White, 1.527 in Dia x 1.968 in L
Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Heavy Duty Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Black/White, 1.527 in Dia x 1.968 in L
- Dry Location and Indoor Applications
- Wiring Device-Kellems Insulgrip® Straight Blade Plug, 1-Phase Grounding Heavy Duty Male Standard, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15P, Commercial/Industrial Grade, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Nylon, Black/White, 1.527 in Dia x 1.968 in L
- PLUG BL STR 125VAC 15A 2 3 BK/WHT 1/2HP
- Product Catalog Page(s)
MSDS
Specification Sheet
- UL 498 File No. E1706|CSA C22.2 No. 42/280|UL94 HB Flammability Rating|NEMA WD1/WD5 WD6
- Brand: Hubbell Wiring DevicesAmperage Rating: 15 AApplication: Industrial/CommercialColor: Black/WhiteConnection: Terminal ScrewsCord Type: All PortableCountry of Origin: USEnvironmental Conditions: Indoor Dry Unless Protected By Additional MeansMaterial: PolycarbonateMounting: Cord MountedNEMA Rating: 5-15PNumber of Poles: 2-PoleNumber Of Wires: 3-WirePhase: SingleSize: 1.52 in x 1.52 in x 1.96 inSpecial Features: Standard ProductStandard: CSA Certified to C22.2 No. 42 File 280;Fed. Spec. W-C596G;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706Sub Brand: Straight Blade DevicesType: PlugVoltage Rating: 125Wattage: 1875 WWire Size: #18 AWG to #10 AWG
