TB DF2504FRAB0
MFG #DF2504FRAB0
UPC #70891713864
SKU #1549024
Product description
TB DF2504FRAB0 200A,REC,4P5W,MG,504,AB0,3P480/277V non-returnable

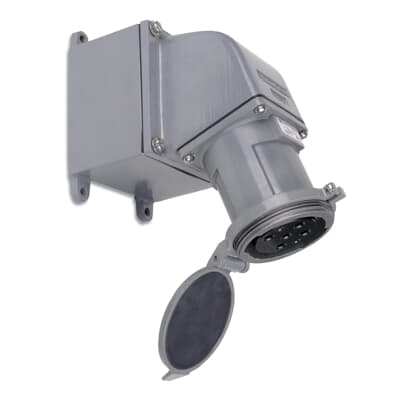

Russellstoll® MaxGard® Flap Cap Receptacle, Explosionproof Female, 30/480 VAC, 200 A, 60 Hz, 4 Pole, 5 Wires, -40 to 130 deg C, Cast Aluminum, 8.25 in H x 6.55 in W x 8.2 in D
Russellstoll® MaxGard® Flap Cap Receptacle, Explosionproof Female, 30/480 VAC, 200 A, 60 Hz, 4 Pole, 5 Wires, -40 to 130 deg C, Cast Aluminum, 8.25 in H x 6.55 in W x 8.2 in D
- Electrical Hook-Up of Mobile Medical Imaging (MMI) Trailers
- Russellstoll® MaxGard® Flap Cap Receptacle, Explosionproof Female, 30/480 VAC, 200 A, 60 Hz, 4 Pole, 5 Wires, -40 to 130 deg C, Cast Aluminum, 8.25 in H x 6.55 in W x 8.2 in D
- Two optional pilot/control pins for contractors, load monitor circuits, shunt trip or any other communication functions you need
Center ground contacts, make first, break last
All receptacles and connectors have a gated rotating disk on the face of the interior, engaged on insertion
- RECEPTACLE CAP FLAP 30/480VAC 200A
- Product Catalog Page(s)
Specification Sheet
- CSA Certified|UL Listed
- Brand: Thomas & BettsApplication: Electrical hook-up of mobile medical imaging (MMI) trailersCountry of Origin: MXMaterial: Cast AluminumSpecial Features: Waterproof construction provides environmental separation at the front of each device (they don't have to be connected together just to be called ""watertight"")Standard: CSA Certified|UL ListedType: MaxGard Interconnection Systems
